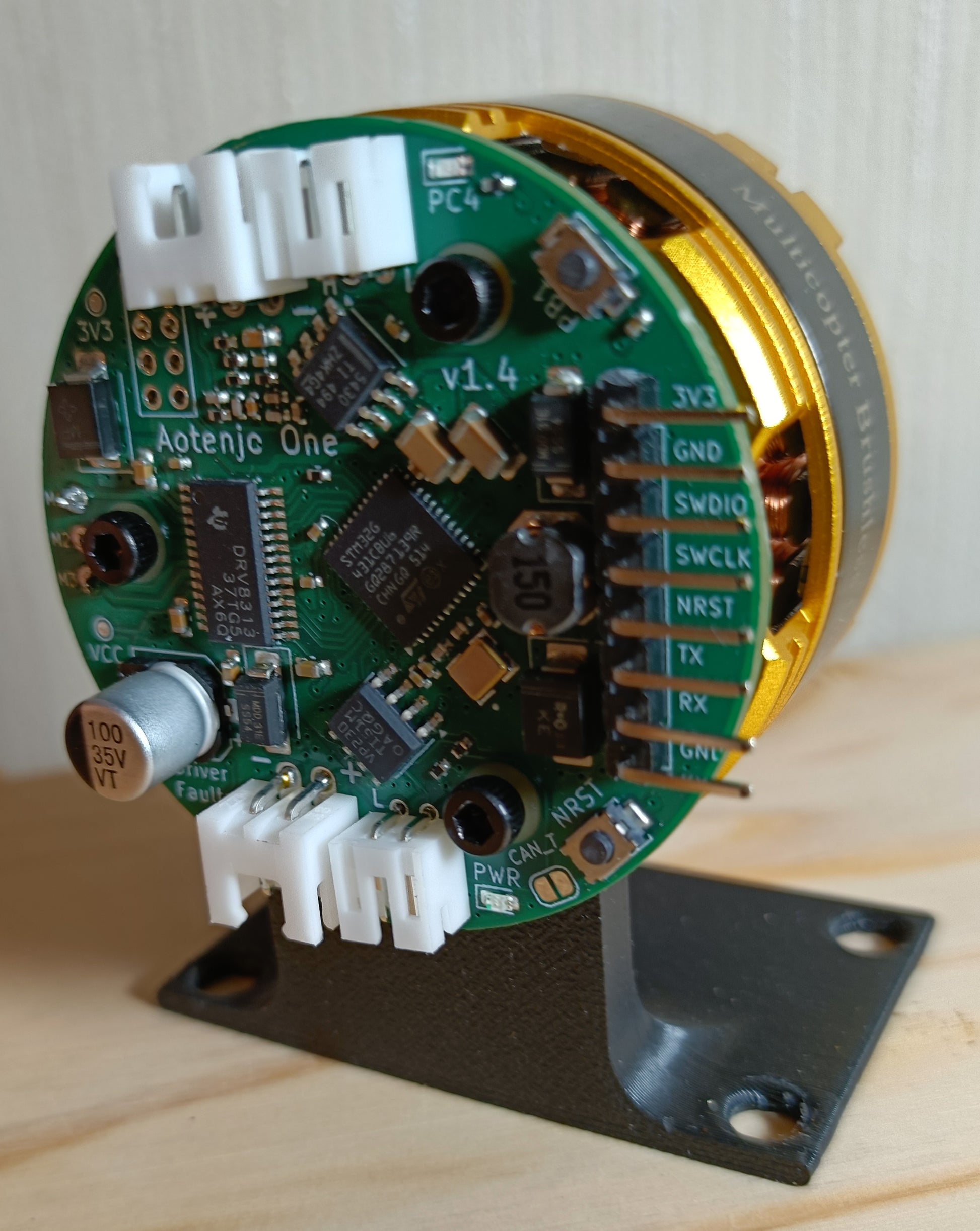

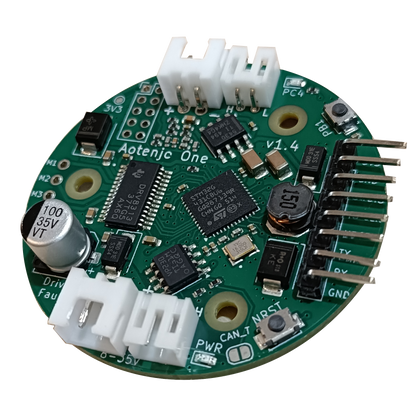

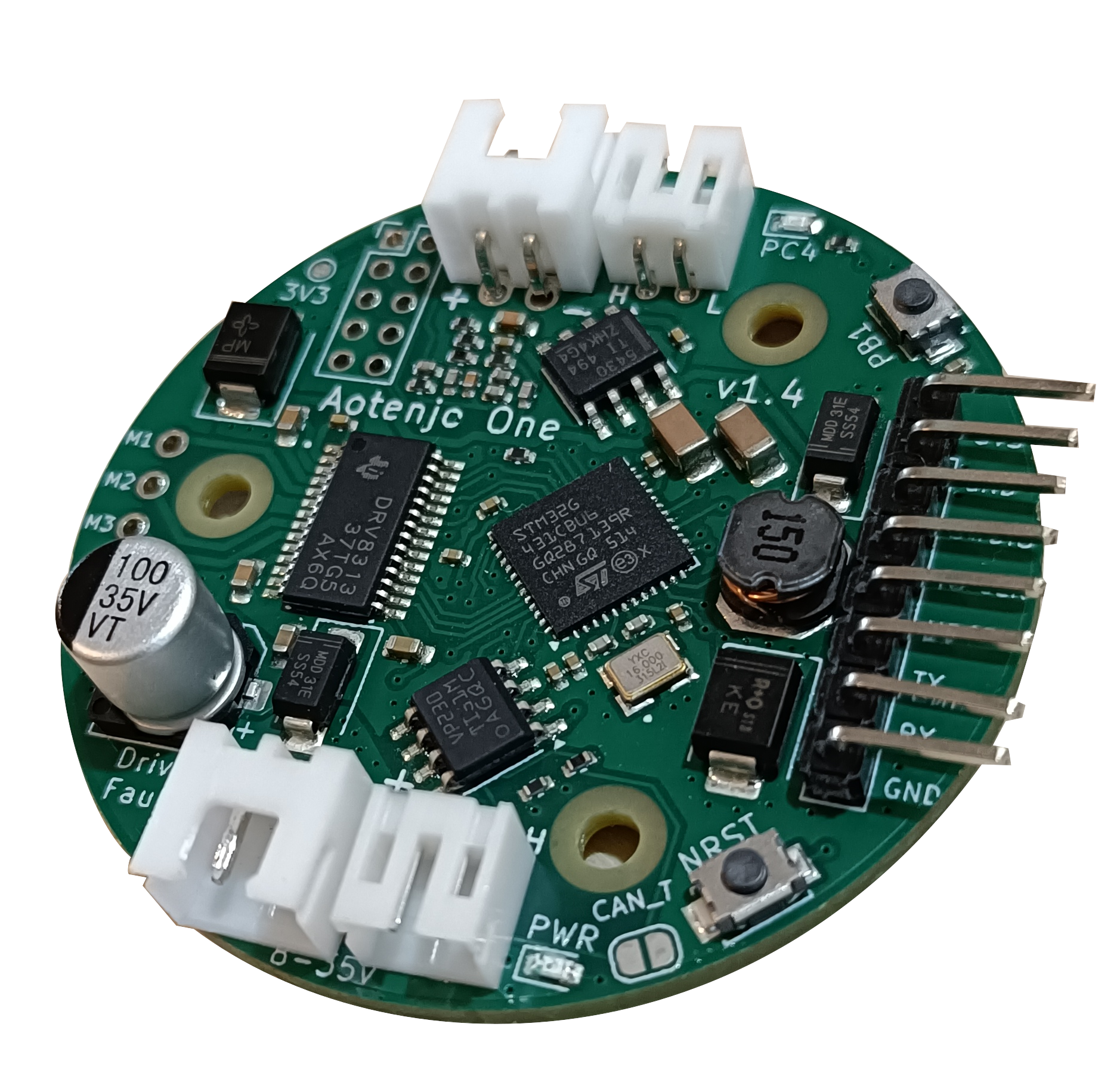

Introducing the Aotenjo One BLDC Motor Control Board: Precision Control for Your Automation Projects
Unleash the full potential of your BLDC motors with the Aotenjo One, a compact and powerful control board designed for demanding robotic and servo applications. Engineered for smooth, efficient, and highly precise motion, this board is perfect for driving gimbal motors, allowing you to build sophisticated automation.
Key Features:
- Powerful Microcontroller: Driven by the STM32G431CB (170MHz, 128KB Flash, 32KB RAM), providing ample processing power for complex algorithms.
- Robust Motor Driver: Built around the DRV8313, capable of delivering up to 2.5A peak current for dynamic motor response.
- Integrated Position Feedback: Features a 14-bit magnetic encoder interface for high-resolution angle sensing, ensuring precise control.

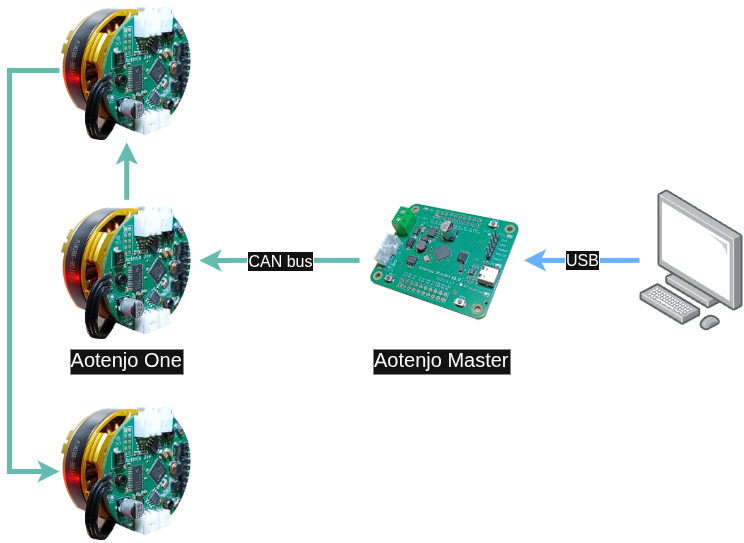

- Versatile Communication: Equipped with CAN (up to 1Mbps) for robust industrial communication, alongside I2C, UART, and SPI for flexible integration.

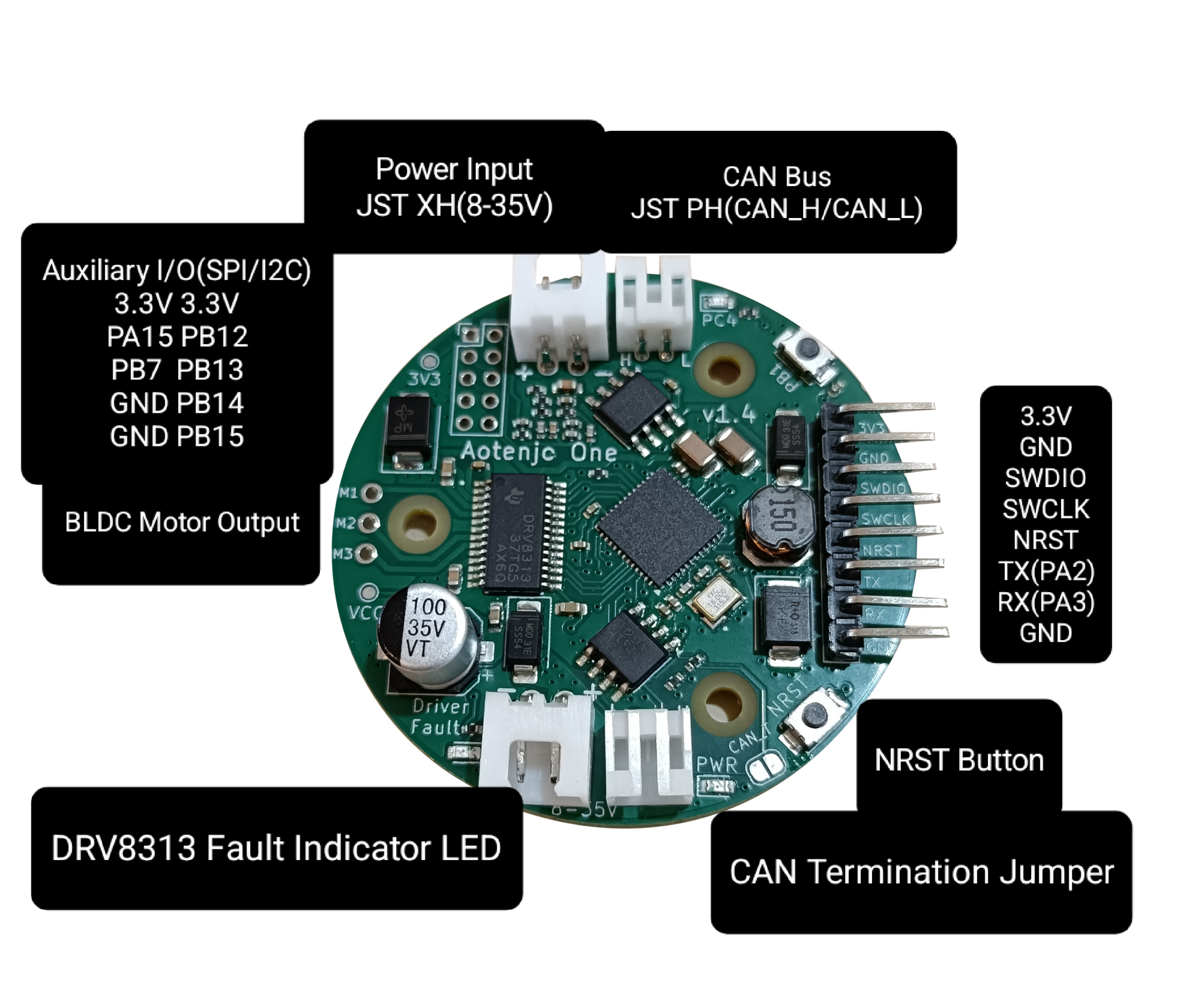

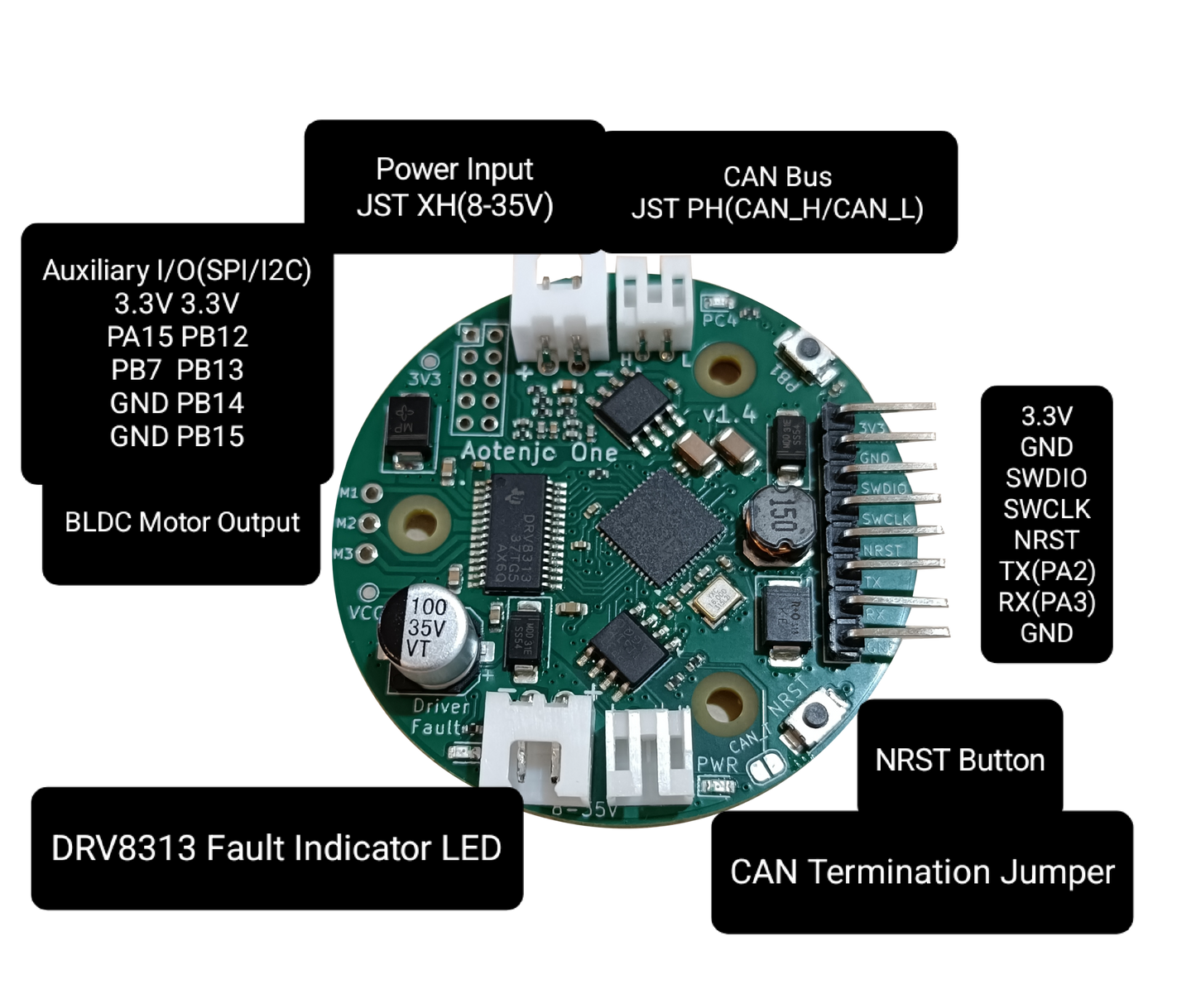

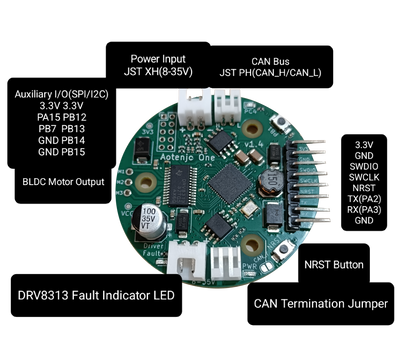

Technical Specifications:
MCU: STM32G431CBU6 (170MHz, 128KB Flash, 32KB RAM)
Motor Driver: DRV8313PWPR
Motor Compatibility: Recommended for motors with internal resistance > 10 Ω
CAN Transceiver: SN65HVD230 (3.3V operation)
Voltage Input: 8-35v
Encoder Interface: 14-bit Magnetic Encoder
Communication Interfaces: CAN, I2C, UART, SPI
Power Interface: JST XH x 2
CAN Interface: JST PH x 2
User Interface: 1x User Button, 1x NRST Button (configurable as user button)
Indicators: 1x Blue LED, 1x Red Power Indicator LED, 1x Red Driver Fault Indicator LED
Mounting: 3 x M2.5 holes
CAN Network Termination: Onboard solder jumper for 120Ω termination resistor (connect pads when board is at the end of CAN bus).

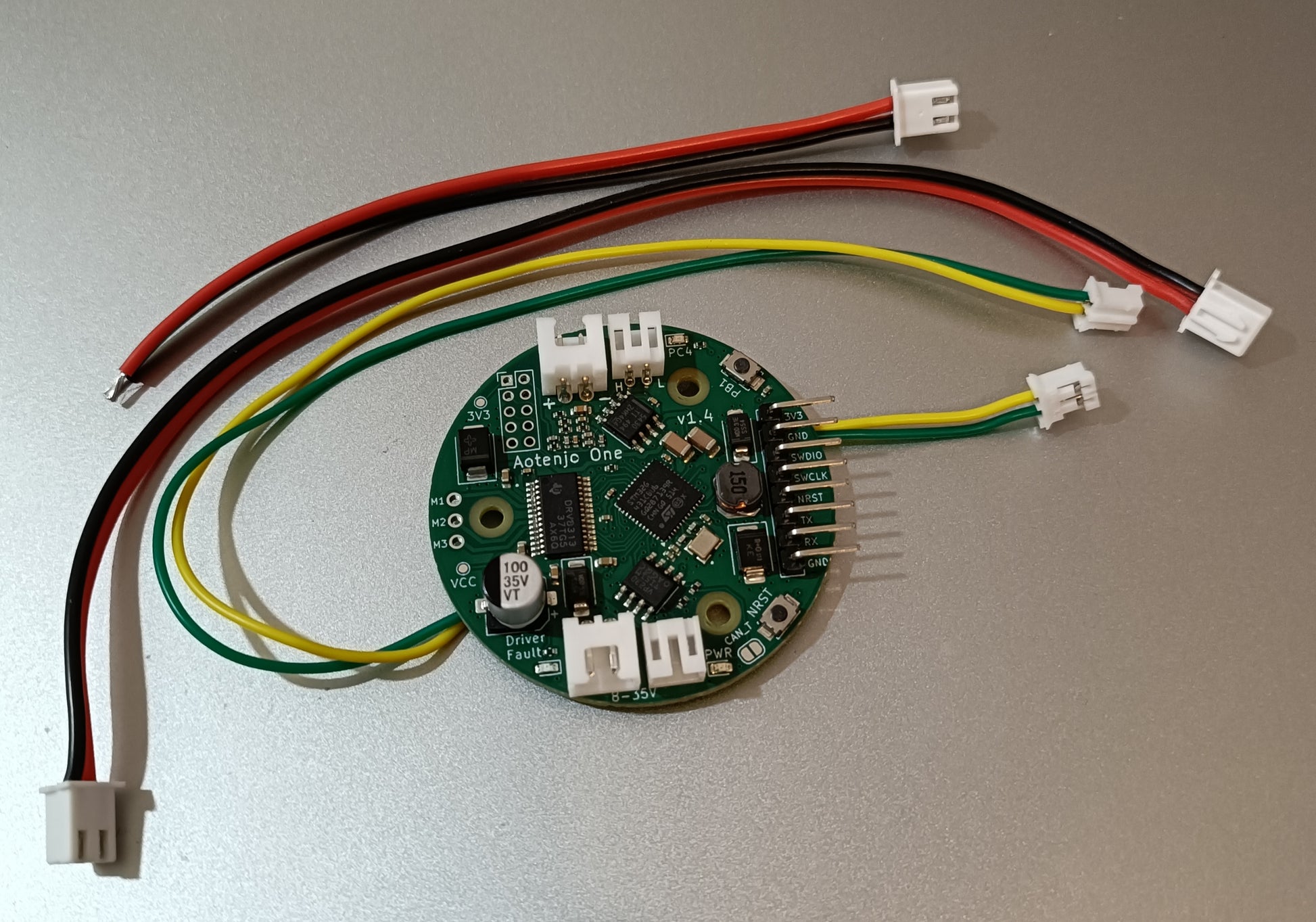

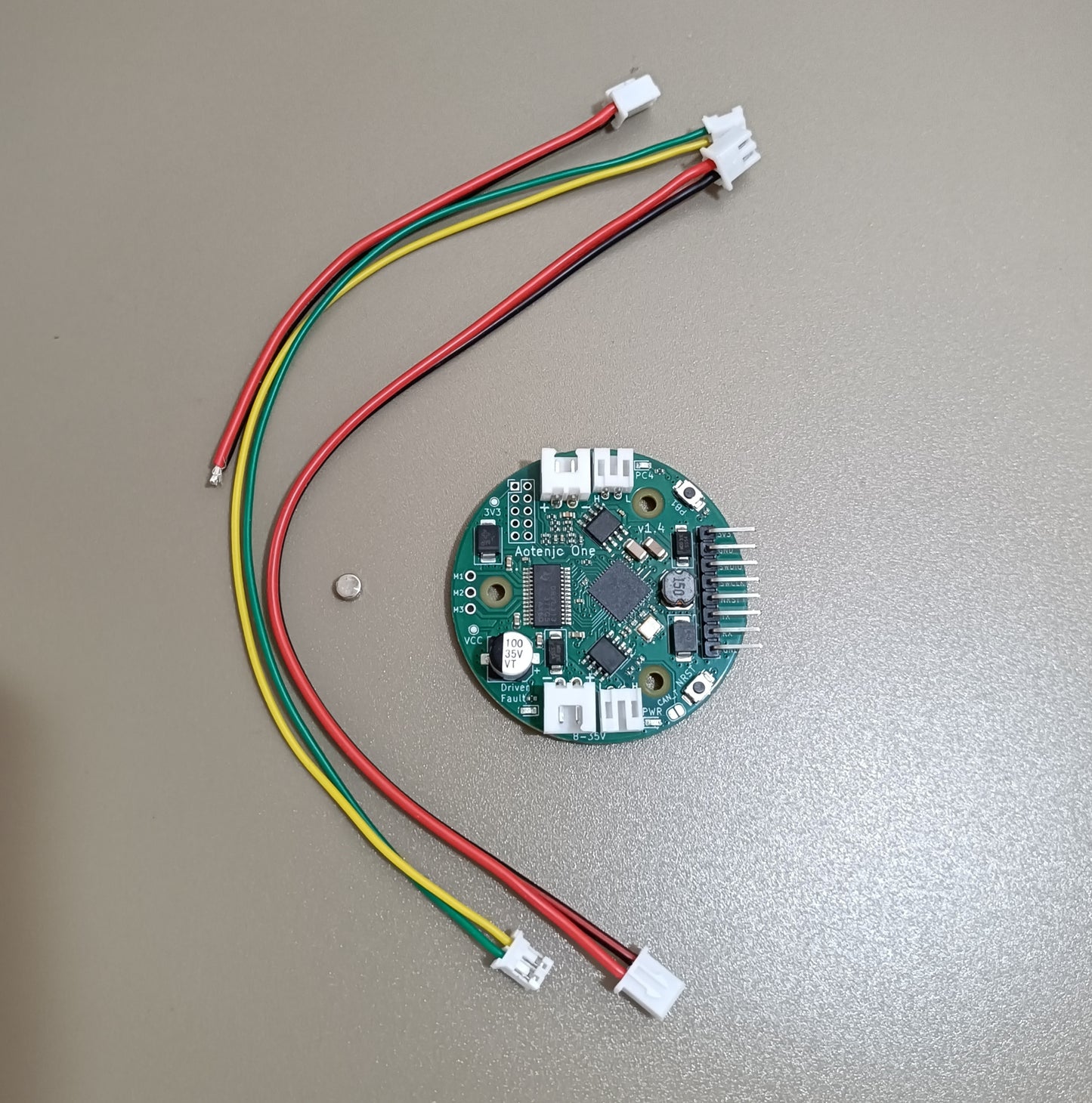

What's Included:
- 1x Aotenjo One Board
- 1x CAN Bus Cable(20cm / 7.87 inches, 28AWG, JST PH 2-pin connector on both ends, green/yellow wires) - for connecting CAN nodes
- 1x Main Power Input Cable (10cm / 3.94 inches, 22AWG, JST XH 2-pin connector on one end with bare leads on the other, red/black wires) - for connecting to a power supply
- 1x Power Daisy-Chain Cable (20cm / 7.87 inches, 22AWG, JST XH 2-pin connector on both ends, red/black wires) - for connecting to Aotenjo One boards or similar
Important Notes:

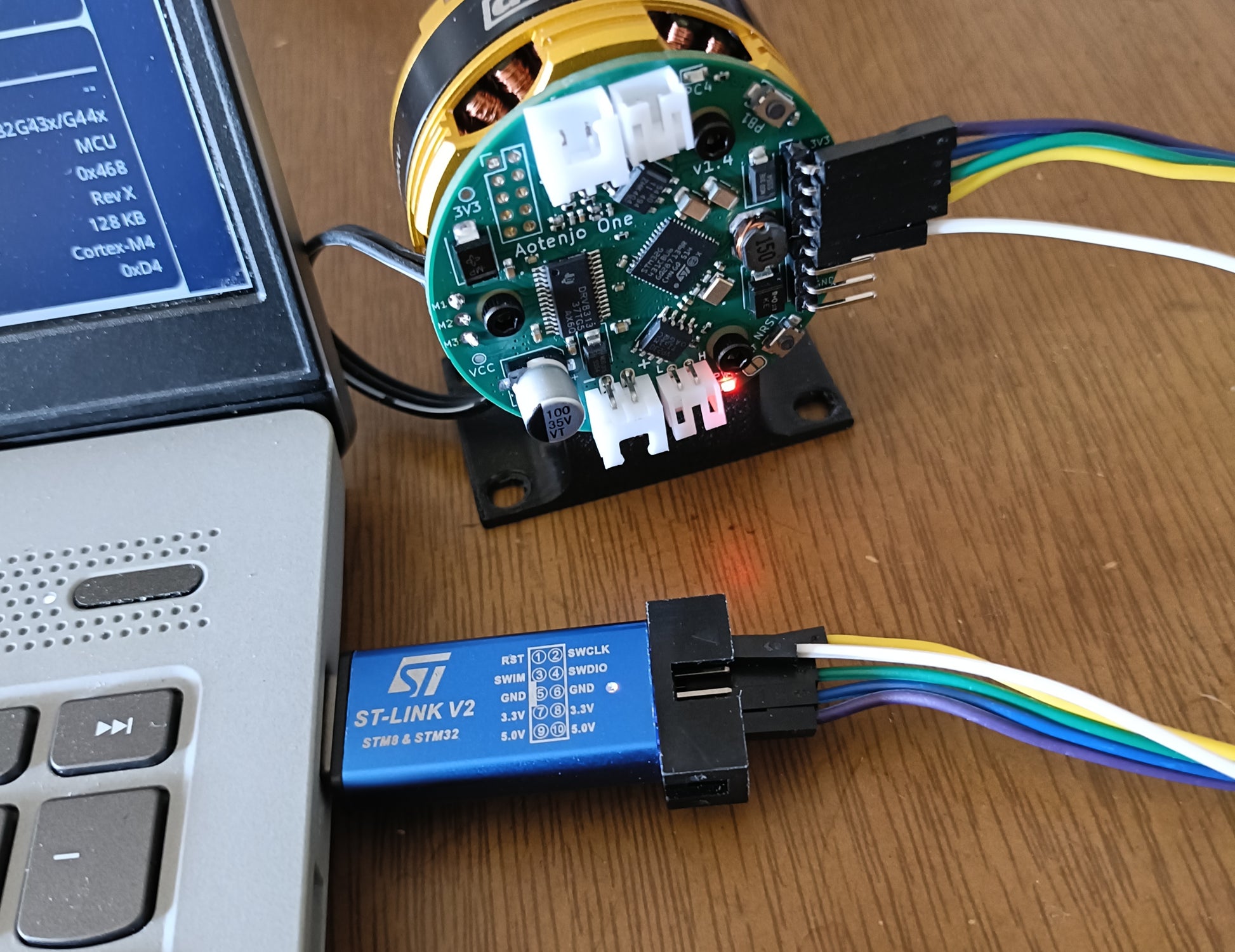

- To program this board, you will need an ST-LINK V2 Clone (or compatible programmer).
- Compatibility Alert: This board is specifically designed for motors with internal resistance greater than 10 Ω. It is NOT suitable for typical low-resistance drone motors. Using incompatible motors may lead to unexpected behavior or damage.
Get ready to bring your precision automation ideas to life. The Aotenjo One board is your foundation for smarter motion control!
